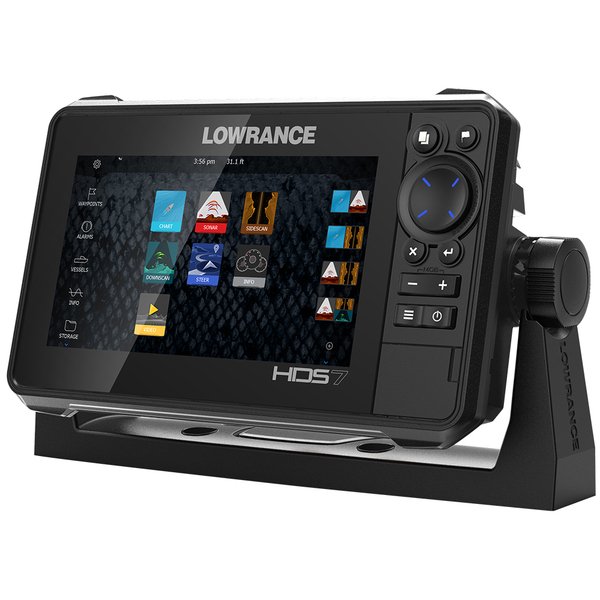

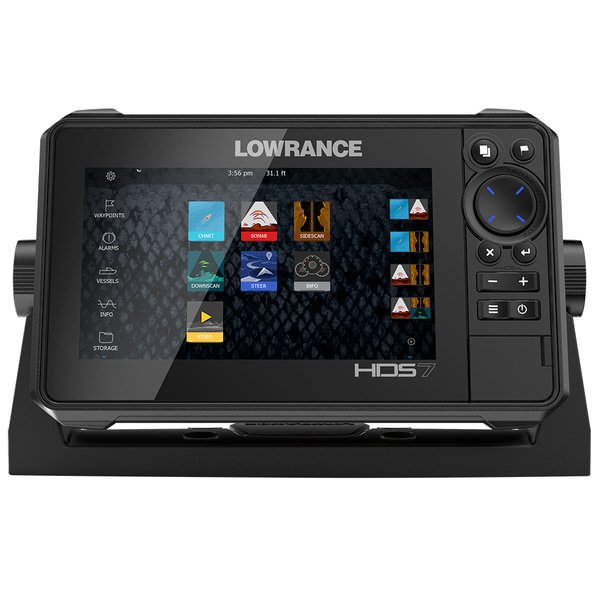

Lowrance HDS-7 LIVE w/Active Imaging 3-in-1 Transom Mount & C-MAP Pro Chart
HDS-7 LIVE with Active Imaging 3-in-1 Transom Mount & C-MAP Pro ChartMore fishing tour pros use HDS than all other fishfinder models combined. That’s no accident. HDS LIVE 7 builds on that tradition with innovative features like Active Imaging™, StructureScan® 3D with Active Imaging, LiveSight™ real-time sonar Forward or Down compatibility, Genesis Live mapping, and more*. At the core of HDS LIVE is its powerful arsenal of sonar functionality. HDS LIVE 7 has excellent out-of-the-box sonar performance with Lowrance® CHIRP, but is set apart by its built-in support for Active Imaging and compatibility with StructureScan 3D with Active Imaging and LiveSight real-time sonar.HDS LIVE 7 comes with the best navigation tools in the history of the HDS series, including C-MAP® Easy Routing and Navionics® Autorouting** capability, preloaded, high-resolution C-MAP US Enhanced inland and coastal charts, plus new C-MAP Genesis Live mapping, which allows anglers to create up to 1/2 foot contour maps, in real time, on the HDS LIVE 7 display.Featuring a high-resolution SolarMAX™ HD screen, HDS LIVE 7 provides industry-leading images that are always easy to see – from any angle, in direct sunlight or even through polarized sunglasses. HDS LIVE 7 delivers powerful fishfinding sonar with a high-performance dual-core processor that produces smooth, lag-free operation, responsive touchscreen performance, and the faster chart redraws and sonar updates. It can easily handle current technology, future upgrades, plus the multitude of HDS LIVE integration options from Power Pole® Shallow Water anchors, autopilots and Broadband 4G™ Radar to the SonicHub®2 audio and SiriusXM® Audio and Marine Weather.*Some features require additional component purchase.**Navionics subscription required. See Navionics.com for more details.Key Features:Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar readyActive Imaging™ 2-in-1 (Side/Down) sonar readyStructureScan® 3D with Active Imaging enhancementsLiveSight real-time sonar compatibleSmartphone notificationsHigh-performance dual-core processorC-MAP Genesis Live onscreen mappingFishReveal™ Smart Target ViewHigh-resolution 7-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglassesPreloaded high-detail C-MAP® US Enhanced charts with 1-foot contours on 4,000 lakesC-MAP Easy Routing, Navionics Autorouting capabilityDual-Channel CHIRP – dual sonar-range coverage from the same transducerLive Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducersSiriusXM Marine Weather and Audio compatibleWireless and Bluetooth® connectivityHeat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areasEnhanced Surface Clarity lets you see more fish targets near the surfaceQuick Access Control Bar provides one–touch access to system controlsSmartSteer™ control for Xi5 Trolling Motor and Outboard PilotRadar and SonicHub®2 audio server connectivityNMEA 2000® engine supportOptional mapping upgrades include C-MAP, Navionics® and moreLowrance HDS LIVE Advantages:Best Screens: You will have an easier time viewing fish, structure and bottom detail on bright and clear SolarMAX™ HD screens that offers clean and crisp views from any angle, in direct sunlight – even through polarized sunglasses.Easy and Efficient Interface: On-the-water adjustments will be quicker and easier with the refreshed HDS interface designed with a simpler feature layout to deliver next-level ease of use and efficiency.Active Imaging: See structure and cover with a new level of refined detail at a range unmatched by anyone else with new, Lowrance Active Imaging. Active Imaging is available with 3-in-1 transducer (CHIRP, SideScan and DownScan Imaging) and Active Imaging 2-in-1 transducer (SideScan and DownScan Imaging) options.View all Structure Imaging – Side-by-Side: For the first time, you can get a side-by-side view of all your structure imaging technology with the enhanced capabilities of HDS LIVE, which supports simultaneous viewing of StructureScan 3D, SideScan and DownScan Imaging™ panels.Most Advanced Fishfinder Technology: Simultaneously view CHIRP Sonar with Active Imaging® 3D to get the best possible view of fish and structure, below and to the sides of your boat.LiveSight: Get live views of fish movements across the bottom, in and around cover and structure with new, revolutionary LiveSight™ sonar. Capable of showing views beneath, or in front of your boat, LiveSight™ is at its best when trolling at very slow speeds or fishing from a single spot. HDS LIVE comes LiveSight™ ready, so all you need to do is mount the LiveSight™ transducer and get after the fish.C-MAP Genesis LIVE:Create your own high-definition 1/2-foot contour maps – in real time – on your HDS LIVE screen with C-MAP Genesis Live. Smartphone Notifications: Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display.FishReveal™ Smart Target View: Makes fish easier to see on DownScan Imaging™ by combining crystal-clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish.High Performance Processor: Whether panning the chart, tracking back through your sonar history or creating a Genesis LIVE map, you will get responsive, smooth operation with no lag from the dual-core processor at the heart of HDS LIVE. The high- performance processor can easily drive today’s technology, like Active Imaging 3D, LiveSight sonar, Genesis Live, StructureMap, Live Network sonar with power toNew, Modern, Low-Profile Design: Enhance the look of your console with the new, zero-edge glass design of HDS LIVE, featuring the exceptional crispness, vibrant images and extreme viewing angles of SolarMAX™ HD technology. Create clean, sleek look at the console with an HDS LIVE flush mount.Live Network Sonar: Cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers. Get sonar views from bow-mounted transducer and the in-hull or transom-mounted transducer at the same time on the same display.Dual-Channel CHIRP:Deep water and trolling anglers will never miss a fish, watching two Lowrance CHIRP frequencies at the same time via a dual-channel CHIRP split screen. Run a High CHIRP panel for the best target separation close to the bottom or in tight schools, a Medium CHIRP panel to cover the widest area – ideal for watching bait schools under a transducer in shallow water, or go deeper with a Low CHIRP panel to cover more of the water column.C-MAP® Easy Routing and Navionics® Dock-to-Dock Autorouting: You will navigate faster and easier with automatic route planning. Menu activated, the feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.C-MAP Navigation Palette: Enhances the readability of C-MAP charts, especially near shore, where the colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct. That makes it easy to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land. The color scheme is much easier on the eye.Wireless Connectivity:Integrated wireless connectivity with the Lowrance® LINK App and other onboard devices, allows you to download software updates and custom C-MAP® Genesis maps directly to the display and offers wireless smartphone viewing/tablet control of HDS Carbon displays.Network All Components:Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar™, SonicHub®2 Marine Audio, SiriusXM® Marine Weather and audio, Class B AIS and DSC VHF, as well as industry-leading technologies, like Mercury® VesselView® Link, Bluetooth® control of Power-Pole® shallow water anchors equipped with the C-Monster™ Control System and the SmartSteer™ interface, featuring control of MotorGuide® Xi5 trolling motor and the Lowrance® Outboard Pilot.Specifications:Display: 7"Screen: High-Resolution SolarMAX™ HD multi-touch displayResolution: 800 x 480Backlighting: LEDPower Output: RMS (PTP): Max 500W RMSOperating Voltage: 12 vDC (10-17 vDC min-max)Warranty: Two yearSonar Specifications:Depth Alarm: YesSonar Frequencies: 455/800 kHz (StructureScan® 3D with Active Imaging, Active Imaging 3-in-1), 40-60kHz, 85-145kHz, 130-210kHz(CHIRP), 50 kHz/83kHz/200kHz (Narrow Band) Max Side-Scanning Range: 600 feet per sideShallow Alarm: Yes Temperature Readings: YesTransducer Type: Multiple selections Lowrance® and Airmar®Max Depth Per Sonar Operation:StructureScan 3D: SideScan ─ 600 ft/183m; DownScan ─ 300 ft/92mActive Imaging HD: 300 ft / 91 m @ 455/800 KHzCHIRP: 3,500 ft / 1067 m (transducer dependent)Technical/EnvironmentalWaterproof Standard/Rating: IPx7DimensionsProduct Width: 9.21 in \ 233 mmProduct Depth: 3.06 in \ 78 mmProduct Height: 5.73 in \ 146 mmPowerPower Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)GPS NavigationNavigation: Routes: 200Navigation: Waypoint Storage: 5,000GPS Antenna Type: Internal 10Hz ultra-high-sensitivity WAAS + EGNOS + MSAS (optional external antenna) Plot Trails: Up to 100 trails - up to 10,000 points / trailGPS Alarms: YesMapping: Preloaded C-MAP US Enhanced charts, plus worldwide reference background mapMapping Options: C-MAP Insight Pro, C-MAP Lake Insight HD, C-MAP MAX-N+, Navionics®+, Navionics Platinum+, Gold and HotMaps® Premium, Fishing Hotspots® PRO and more.Networking ConnectorsNMEA Port: NMEA 0183 + NMEA 2000®Power and Video: Red 10-pin power connectorChannel 1 Transducer port: Black 9-pin connector for Broadband/CHIRP sonar, StructureScan 3D with Active Imaging, SideScan and DownScan Imaging™, LiveSight Forward and DownChannel 2 Transducer Port: Black 9-pin connector for Broadband/CHIRP sonar, Active Imaging 3-in-1 / 2-in-1, TotalScan, StructureScan HD with SideScan and DownScan Imaging™
